Operating Voltage:240VAC
Current Rating:6A
Switching Frequency:20kHz
Protection Level:IP20
Temperature Range:-20°C to +70°C
Load Capacity:Up to 100kHz
Communication Protocol:RS485
Input Signal:24VDC logic level
Output Configuration:Single or dual-channel

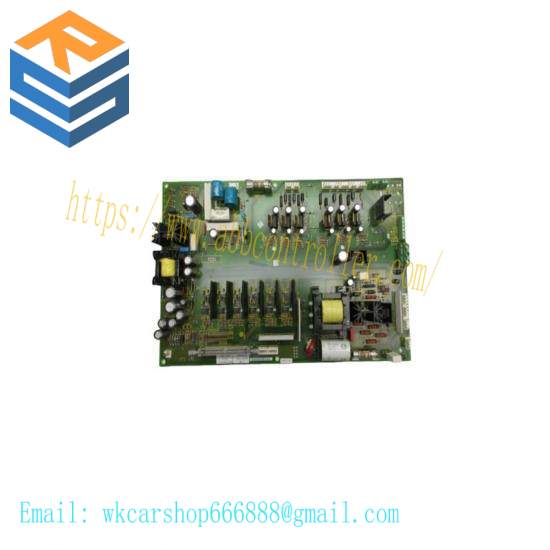

Introducing the ABB 1336-BDB-SP38A gate drive board, an indispensable component for advanced industrial control systems. This board boasts a robust design, offering unparalleled precision in managing power electronics for a wide array of industrial machinery.
Featuring an impressive operating voltage range of 240V AC, it’s versatile enough to cater to diverse industrial needs. With a peak current rating of 50A, this gate drive board ensures efficient power delivery, optimizing performance across different operational scenarios.
Engineered with meticulous attention to detail, the 1336-BDB-SP38A incorporates state-of-the-art insulation technology, ensuring a minimum insulation resistance of 10 MΩ. This not only enhances electrical safety but also prolongs the lifespan of your equipment by significantly reducing the risk of short circuits.
Adaptable to extreme conditions, this gate drive board is rated to operate within a temperature range of -40°C to +70°C. It’s also designed for long-term storage in temperatures from -40°C to +85°C, making it a reliable choice for both industrial plants and remote locations.
Ease of integration is another key feature of the ABB 1336-BDB-SP38A. It seamlessly connects with various industrial control systems, providing seamless control and monitoring capabilities. Whether you’re upgrading existing infrastructure or planning new installations, this gate drive board is your go-to solution for enhanced system efficiency and reliability.
