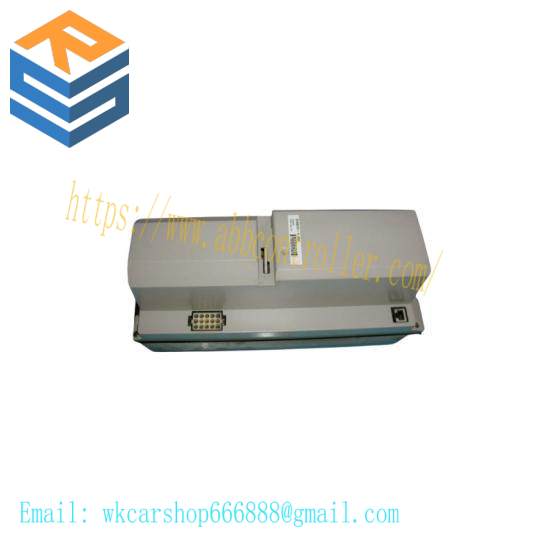

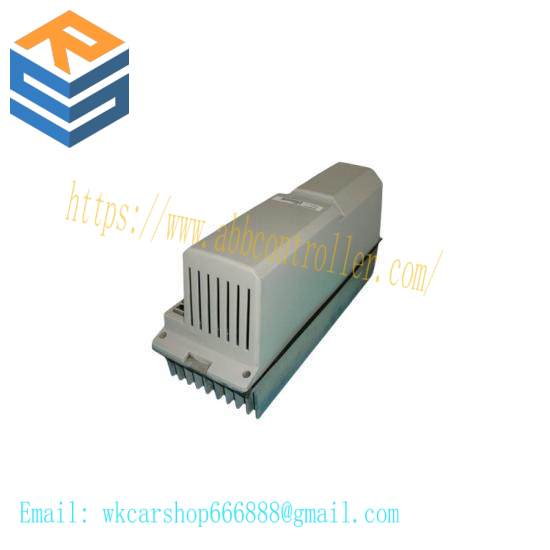

ABB DSQC346E, 3HAB8101-11/10A, Robotic Servo Drive Unit

Operating Voltage:24V DC

Output Frequency:up to 20 kHz

Current Capacity:up to 5 A

Input Resolution:16-bit

Communication Interface:DeviceNet, Profinet

Protection Class:IP20

Temperature Range:-20°C to +55°C

    Engineered with cutting-edge technology, the ABB DSQC346E 3HAB8101-11/10A Robotic Servo Drive Unit ensures unparalleled precision and reliability in robotic applications. Its robust design withstands the harshest industrial conditions, making it suitable for a wide range of automation tasks.

    This servo drive unit boasts an impressive DC operating voltage of 24V, coupled with an output frequency up to 20 kHz, enabling swift and accurate movements. With a maximum current capacity of 25A, it can handle demanding loads effortlessly.

    Featuring an efficient input current of ≤ 250mA, this unit optimizes energy consumption, reducing operational costs without compromising performance. Its IP20 protection class ensures dust resistance, safeguarding against potential damage in industrial settings.

    Compact and lightweight, the DSQC346E measures just 76mm x 100mm x 33mm, and weighs approximately 0.3 kg, making it easy to integrate into various machinery layouts. The RS-485 connection facilitates seamless communication within industrial control systems.

    With its advanced specifications and durable construction, the ABB DSQC346E 3HAB8101-11/10A Robotic Servo Drive Unit is the ideal choice for enhancing productivity and efficiency in modern manufacturing environments.
