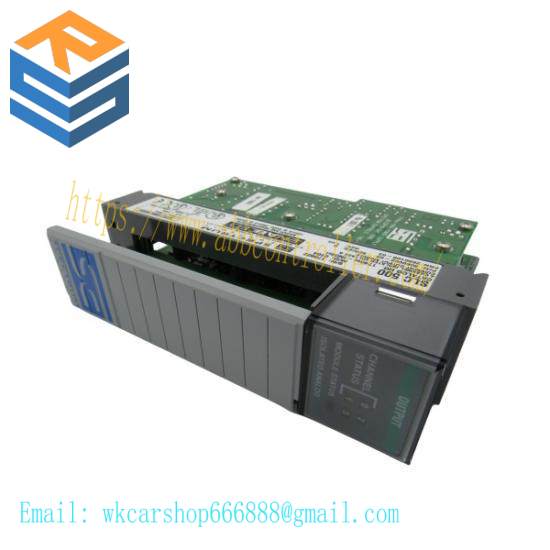

Allen Bradley 1746SC-INO4VI Volt Output SLC 500 Analog Input Module

Model Type:SLC 500

Model Number:1746SC-INO4VI

Manufacturer:Allen Bradley

Number of Channels:2 Input, 2 Output

Input Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Current Range:-30 To 30 MA

Output Voltage Range:-10 To 10 V – 1 LSB

Full Scale Output Voltage:10 VDC

Overvoltage Protection:7.5 VAC RMS

Input Range:-10 To 10 VDC – 1 LSB

Environmental Conditions:Operating: 0 – 60 DEG C, Storage: -40 – 85 DEG C

Relative Humidity:5 – 95%, Non-Condensing

Shock Resistance:30 G

Communication Ports:EtherNet/IP, DH+, DH-485, RS-232

Isolation Rating:Communication Circuits: 500 VDC, Backplane: 1500 VAC

    Introducing the AB 1746SC-INO4VI Analog Input Module, a critical component in industrial automation systems designed to optimize your plant’s performance by seamlessly integrating sensor data.

    With its advanced capabilities, this module ensures precise and reliable signal conversion, making it ideal for a wide range of applications including temperature, pressure, and flow measurements.

    Featuring a robust and compact design, the 1746SC-INO4VI is built to withstand harsh industrial environments while offering a lightweight profile for easy installation.

    Equipped with compatibility for various thermocouple types, it supports both ±50mV and ±100mV measurement ranges, providing unparalleled flexibility and accuracy in data acquisition.

    For seamless integration into your existing control system, the module supports the SLC 500 bus protocol, ensuring efficient communication and data transfer.

    Backed by a commitment to quality and reliability, the AB 1746SC-INO4VI comes with a comprehensive set of specifications tailored to meet the demands of modern industrial automation.
