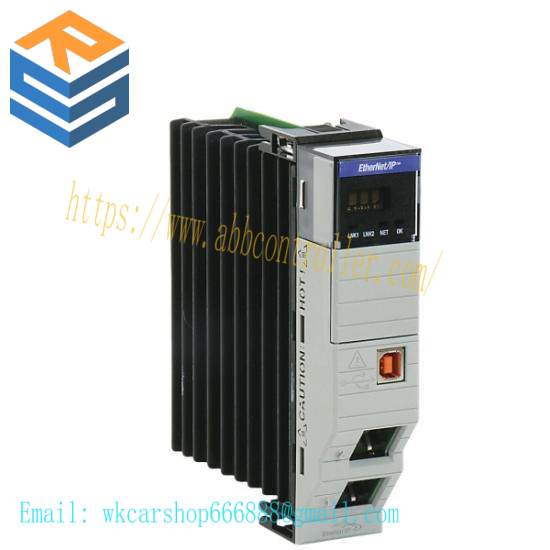

Allen-Bradley 1756EN2TR Ethernet/IP Bridge Module

Model Type:Communication Module

High Capacity IP Module:Yes

Model Number:1756EN2TR

Manufacturer(s):Allen Bradley

ControlLogix Communication Module:Yes

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

    The Allen-Bradley 1756EN2TR ControlLogix EtherNet/IP Bridge Module is a cutting-edge solution designed to enhance the efficiency of industrial automation networks. This module seamlessly integrates with ControlLogix systems, facilitating robust data exchange across various devices with high reliability and speed.

    With its 10/100 Mbps Ethernet/IP connectivity, the 1756EN2TR ensures fast and reliable communication, making it ideal for complex manufacturing environments where precision and speed are paramount. The open-type enclosure ensures durability in harsh industrial settings, while the 3 mA power supply at 24 VDC provides efficient operation under varying conditions.

    This module supports a wide temperature range from 0 to 60°C, ensuring stable performance in diverse environments. Its low power dissipation of 5.1 W and high isolation of 30 V continuous allow for energy-efficient operations, even in environments with significant vibration and shock.

    The 1756EN2TR is equipped to handle extreme environmental conditions, with a humidity tolerance of 5 to 95% non-condensing, and is designed to withstand up to 2 G of vibration and 30 G of shock. These specifications make it suitable for deployment in rugged industrial applications without compromising on performance.

    Equipped with 802.3 compliant shielded or unshielded twisted pair cables, the Allen-Bradley 1756EN2TR ensures secure and reliable data transmission. Its compatibility with ControlLogix systems enhances system flexibility and scalability, allowing for easy integration into existing automation setups.
