Brand:Allen-Bradley
Model:2094-BMP5-S
Series:Kinetix 6000
Continuous Output Current (rms):2.8 A
Continuous Output Current (0-pk):4.0 A
Peak Current (rms), Series A:4.2 A
Efficiency:98%
Continuous power out (nom):1.8 kW
Voltage Class:400V
Nom Drive Voltage:360 / 480V (3 Phase)
Nom Input Voltage:650 Volts DC
Continuous Current (rms):2.8 Amperes
Continuous Current (sine, 0-peak):4.0 Amperes
Bandwidth Current Loop:1300
Dimensions (WxHxD):272 mm x 70 mm x 281 mm
Weight:2.44 kg
Operating Temperature Range:0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit)
Storage Temperature Range:-40 to 70 degrees Celsius (-40 to 168 degrees Fahrenheit)

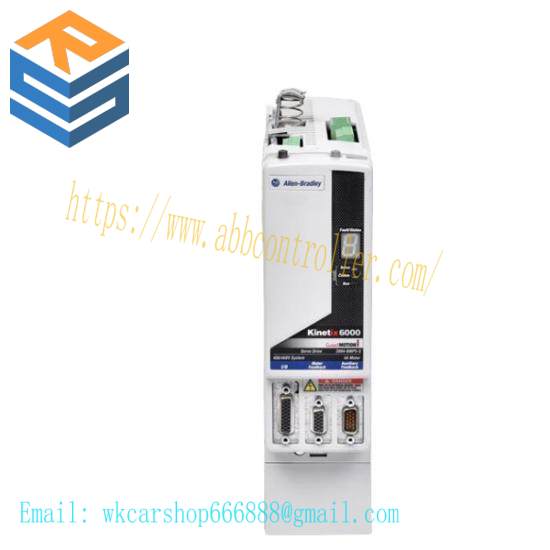

The Allen-Bradley 2094-BMP5-S is an axis module designed for industrial automation with integrated safety features, specifically the Safe Torque-Off (STO) mechanism, which ensures system safety and compliance with ISO 13849-1 PLe/SIL 3 standards.
Featuring a wide input voltage range of 95-264V AC, this drive provides reliable power to servo motors, supporting high-performance applications with its 1.8 kW output capacity and 4A output current.
Operational within a temperature range of 0-50°C, the 2094-BMP5-S is suitable for continuous use in industrial environments, while its storage capacity extends to -40-70°C, ensuring durability and longevity.
Crafted with robust materials and optimized for efficient power management, this module ensures minimal energy loss, achieving an impressive efficiency rating of 98%. It’s ideal for pairing with various Allen-Bradley servo motors, including low-inertia, food-grade, and high-end models.
With dimensions measuring 272mm x 70mm x 281mm and weighing approximately 2.44 kg, the 2094-BMP5-S is compact yet powerful, making it easy to integrate into existing systems or new installations. It adheres to shock resistance standards of 15G and operates effectively up to an altitude of 1000m without any performance degradation.
